JUICED Off-Road Performance Controller & Display Kit
Optional Bafang Motors for all Juiced Bikes!
(Plug & Play - Ready to Roll)
Electro Bike world has a Juiced has a performance Off-Road 35 AMP controller and color display upgrade kit that can be used with the original OEM Juiced 3 pin screw-on throttle and 5 pin green torque sensor!
The controller even has extra wires to connect a standard Cadence Sensor and a rear light! The EBW upgraded controller and color display comes with a Z916 female motor connection so you need 1 additional adapter for the Juiced motors to make this work. (See photograph to select the correct adapter for your motor)
Option 1 is for the BaFang 750 watt motor with a Z910 male connection and would need the Z916 male to Z910 female adapter.
Option 2 is for the Bafang 1,000 watt motor with the red L1121 male connection and would need the Z916 male to red L1121 female adapter.

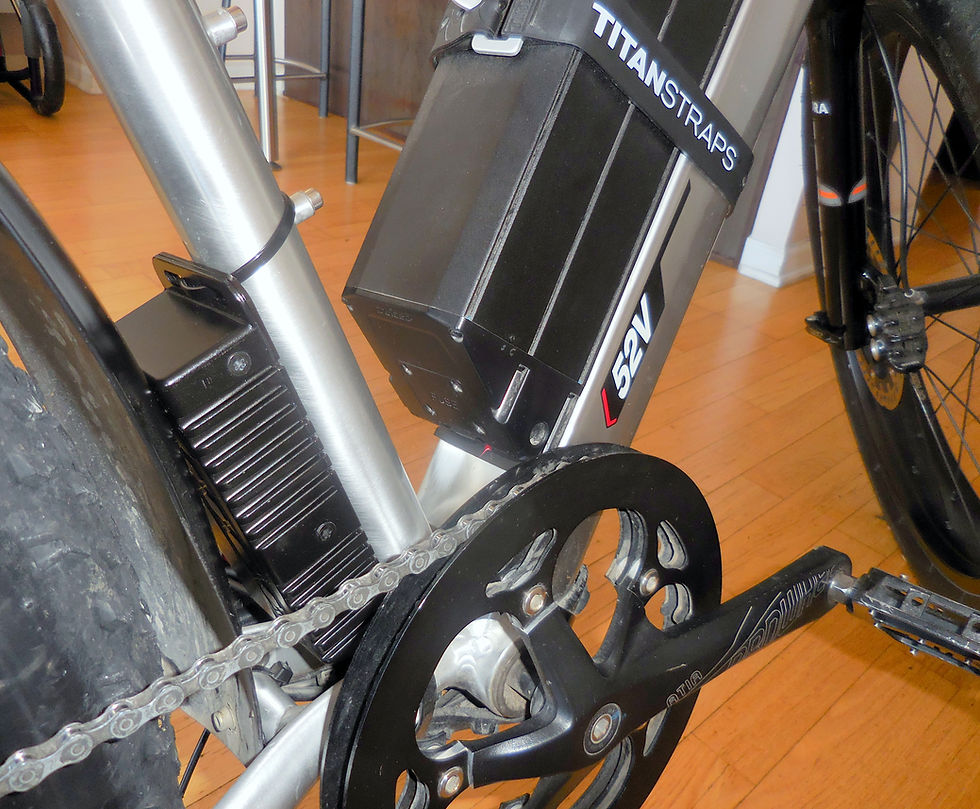

Since the EBW controller is too BIG to fit in the RipCurrent-S (RCS) controller compartment you can use the controller mounting holes and secure with two 8” zip ties to mount controller on the bottom part of the seat tube near the chain ring and in-between the fender or tire with the controller wires facing the ground so the wires are hidden and can be easily routed up the downtube to the handlebars and the XT60 back down the downtube to the batteries XT60 connection. The motor and torque sensor can be easily routed to the back hub area.
You could also buy a controller case on amazon and mount the controller case on the lower part of the seat tube near the water bottle cage bosses mounts or mount any place you want. Juiced Moped style eBikes the controller can be mounted where the original controller was installed.
BAFANG MOTORS: Electro Bike World also a selection of Freehub Cassette motors that are compatible with Juiced Bikes
eMail Vincent at Electro Bike World: electrobikeworld@gmail.com Website: www.electrobikeworld.com
